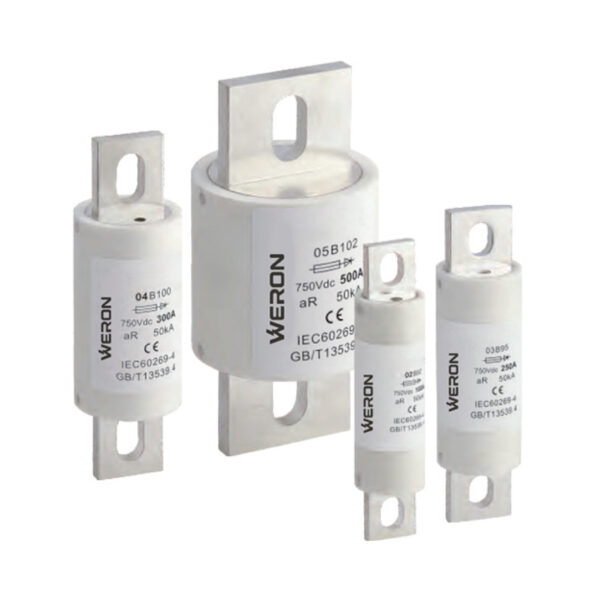

WREV-MF

This product is a cylindrical bolt-connected fuse. It features compact size, high breaking capacity and excellent resistance to current surge. It can withstand high-intensity mechanical vibration and impact, wide temperature cycle shock, and severe chemical load. It is suitable for road vehicle applications, and provides short-circuit and backup protection for electric vehicle drive power systems, power conversion systems, energy storage and power systems, frequency conversion controllers, chargers, cables, and other automotive components and equipment.

Features

  • Rated Voltage :AC/DC750V
  • Rated Current: 35A~800A
  • Breaking Capacity: AC100kA,DC50kA
  • Performance Refer: IEC60269,ISO8820,GB/T31465
  • Pass Ce Certification And Comply With Rohs Directive.

Purpose and Use

This product is a cylindrical bolt-connected fuse. It features compact size, high breaking capacity and excellent resistance to current surge. It can withstand high-intensity mechanical vibration and impact, wide temperature cycle shock, and severe chemical load. It is suitable for road vehicle applications, and provides short-circuit and backup protection for electric vehicle drive power systems, power conversion systems, energy storage and power systems, frequency conversion controllers, chargers, cables, and other automotive components and equipment.

Note: All test data in this specification are measured under DC conditions.Time constant requirements: for prospective test current > 20 kA, adopt 10-15 ms; for prospective test current <20 kA, adopt 0.5 ~ 3 ms. The wiring method complies with ISO 8820 and GB/T 31465.



Technical Parameters

Product ModelFigure No.Rated current(A)WattsLoss(W)Energy Integrals I²t(A²s)
Pre-Arcingl²tTotal clear  l²t
WREV-MF02B92359.534148
4010.574300
4511.595420
5012135590
6013190870
70173001680
80193502000
9022.54002500
100245403300
03B951252714306500
1503126609500
17534390015700
20040520019950
04B10022543730029500
25045940039900
275491190059900
300531620067500
05B102325571950079400
350612280090300
4007331000118800
06B1344509034200129200
50010042800159600
60011464600242300
07B12870011967500281200
80013375100416100

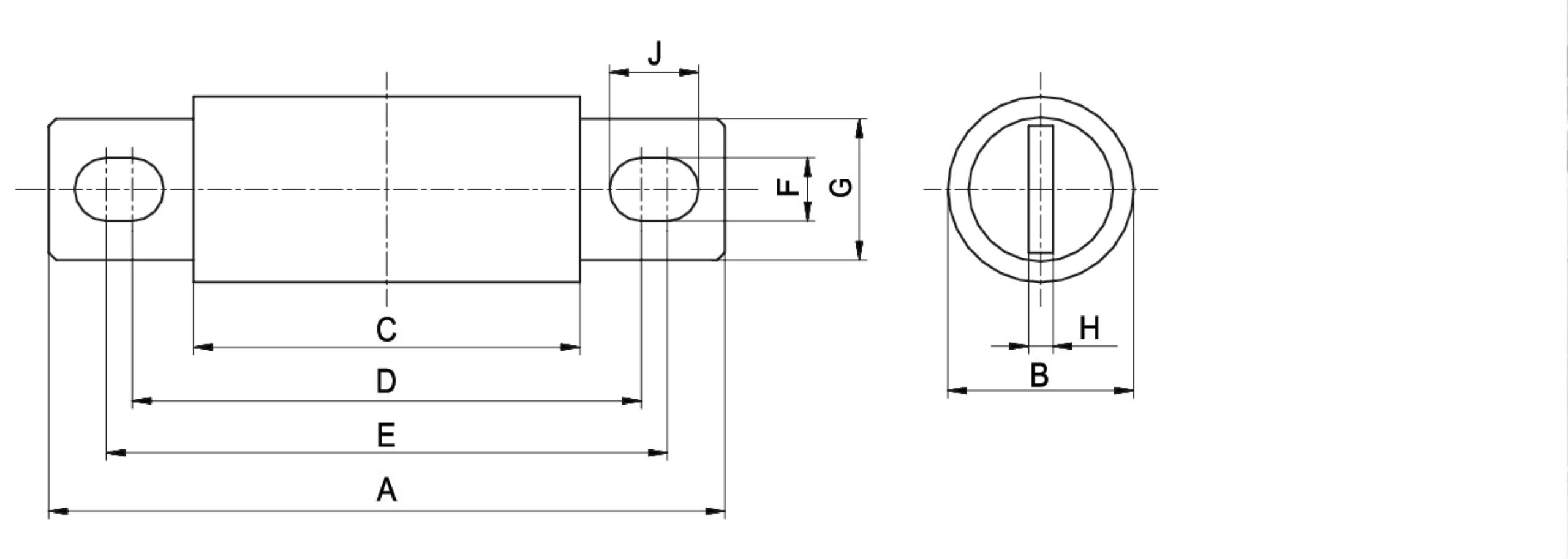

Dimensions(mm)

Dimensions(mm)

Figure No.A±2B±0.5C±0.5D±1.5E±1.5F±1G±1H±0.2
02B92112257296888.5194
03B95116307298908.5245
04B10012838721089010.5256
05B10213051721089010.5386
06B1341746372139.5128.512.55110
07B1281727572133123136010

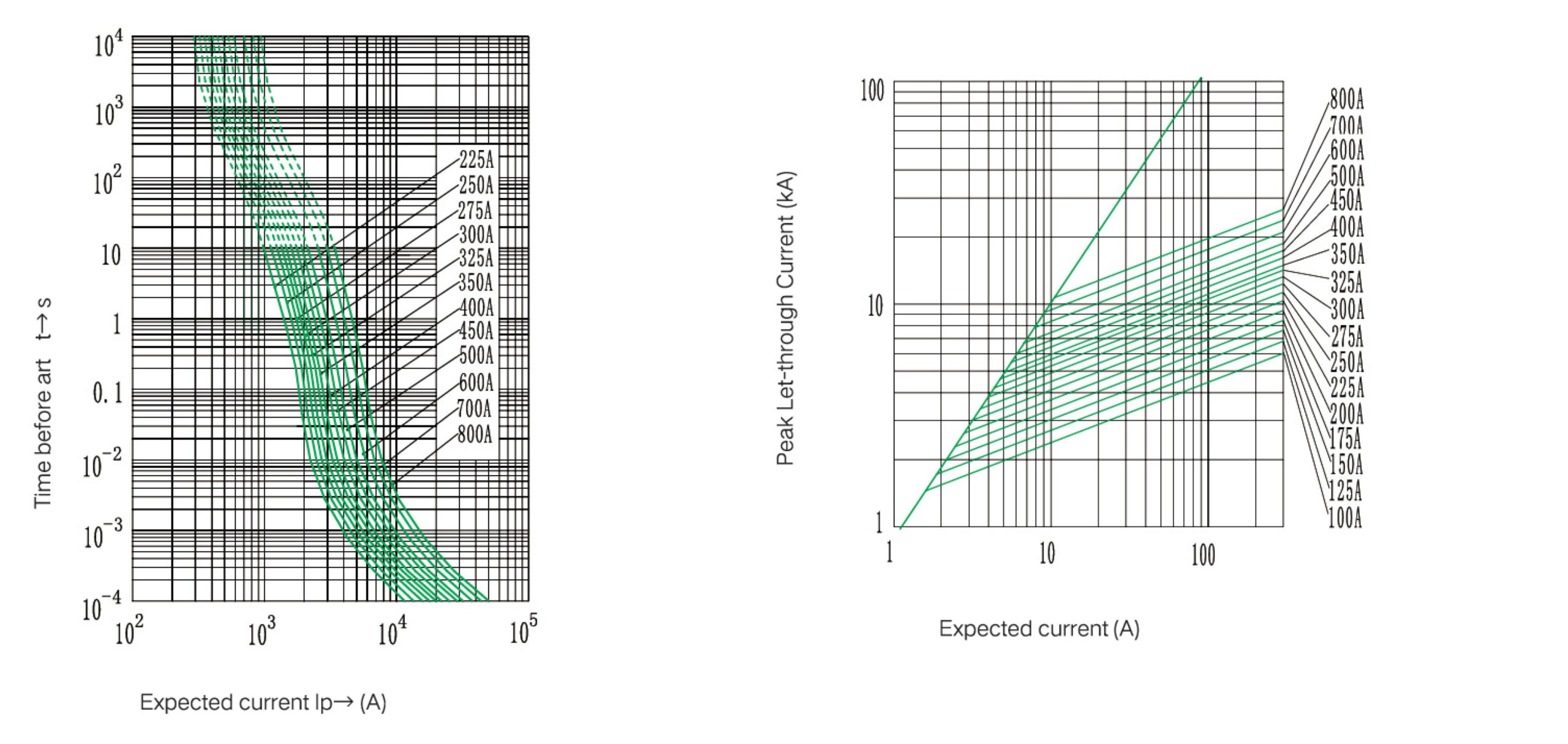

Characteristic Curve

Time Current Curve

Time Current Curve
