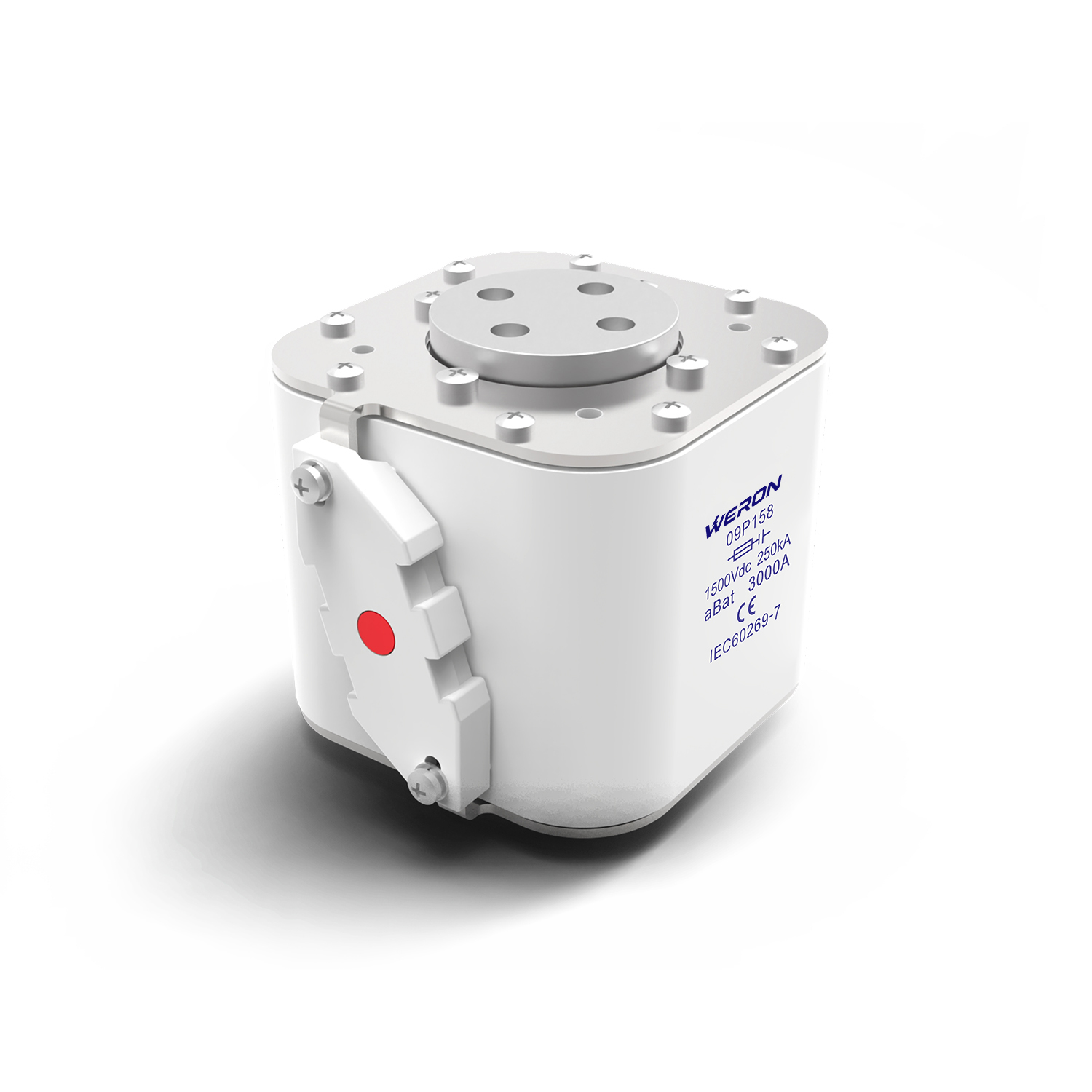

WRES-MP DC1500V- 3000A

This series of fuses are suitable for short circuit and overload protection of electric vehicle drive power system, power conversion system, energy storage and power system, variable
frequency controller, charging pile, and other vehicle devices and equipment in lines with DC rated voltage up to 1500V and rated current up to 3000A. The rated breaking capacity is up to 250kA. The fuses conform to the national standard GB/T13539.7 and the International Electrotechnical Commission Standard IEC60269-7.

Application

This series of fuses are suitable for short circuit and overload protection of electric vehicle drive power system, power conversion system, energy storage and power system, variable
frequency controller, charging pile, and other vehicle devices and equipment in lines with DC rated voltage up to 1500V and rated current up to 3000A. The rated breaking capacity is up to 250kA. The fuses conform to the national standard GB/T13539.7 and the International Electrotechnical Commission Standard IEC60269-7.

Normal working conditions

1、The effect of current

The upper limit of ambient air temperature should not exceed 90℃; the lower limit of ambient air temperature should not be lower than -50℃; the altitude of the installation site should not exceed 2000m (if you want to exceed this 2000m, you need to indicate the requirements, and the company can design and develop according to customer requirements).

fuse link derating table for installation

Installation altitude(m)Percentage of current derating (A)Percentage of Insulation performance derating(V)
2000100%100%
300095%90%
400090%80%
500085%70%

For example: the rated current is 1800A and the installation site altitude is 5000m, the actual selection is 1800*85%≈1530A.

2、The effect of Voltage

The rated voltage of photovoltaic fuses does not need to be derated for installation altitudes not exceeding 5000m, but it is affected by air pressure on the power frequency withstand voltage and insulation performance to a certain extent. The test voltage of DC 1001-1500V is 3820V, and Our products reach at least 6000V, so here is no need to consider.

3、The effect of temperature

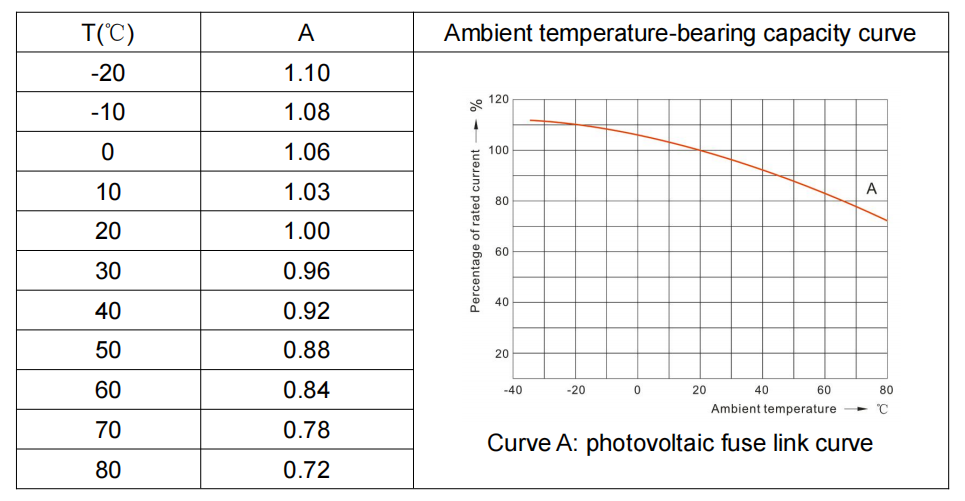

The following figure shows a typical curve of the influence of ambient temperature on current carrying capacity:

The Effect Of Temperature

For example: In some applications, the ambient temperature is 20°C, and the rated current of the photovoltaic (aBat type) fuse is selected as 63A. Now, the above-mentioned fuse is often used in a high temperature environment of 70 ℃, then the fuse must be derated. The environmental bearing capacity curve A in the figure shows that the percentage of the rated operating value at 70°C is 0.78, that is to say, the rated current value of the fuse should be reselected:


Choose 80A according to the standard current level of the fuse

Use category

“aBat” is Fast DC fuse for new energy protection.



Structural features

The variable cross-section melt made of silver flakes is encapsulated in a high-strength melt tube. The melt tube is filled with chemically treated high-purity quartz sand and special treatment chemicals as the arc extinguishing medium. The welding and the contacts are firmly electrically connected.



The main technical parameters

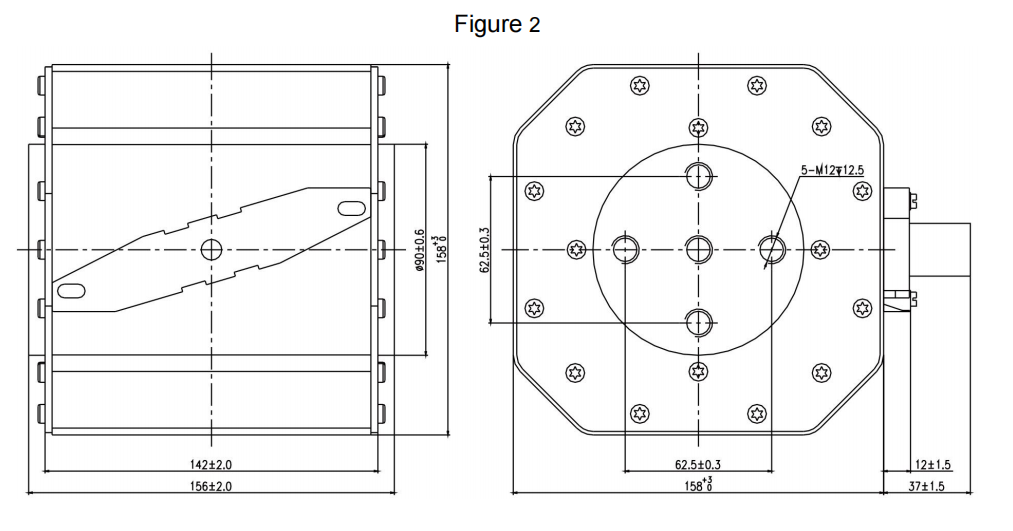

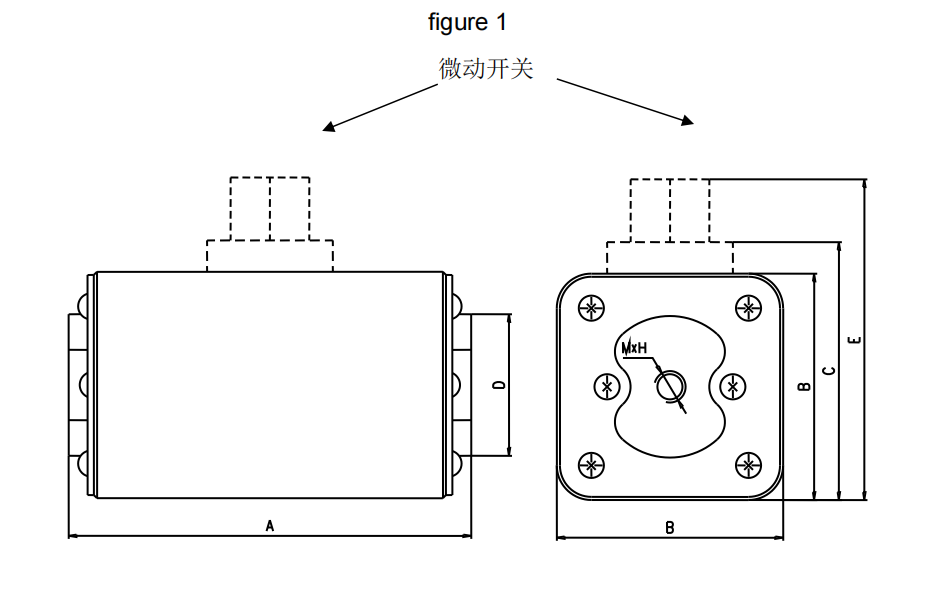

Figure 1 Figure 2

Fuse modelRated voltage (V)Rated current (A)Overall dimensions/size (mm)
aBatDrawing numberABCDEMxH
WRES-107K130KNDC1500V300、350、400、450、500、550、600、630、710、800、900、10001132±2105±1.5117±2.570±0.8142±2.5M16×16
WRES-108K130KNDC1500V800、900、1000、1100、1250、1300、1400、1500、1600、1700、18001132±2120±1.5132±2.580±0.8157±2.5M16×16
WRES-509K156KNDC1500V1250、1350、1500、1800、2000、2500、30002See Figure 2

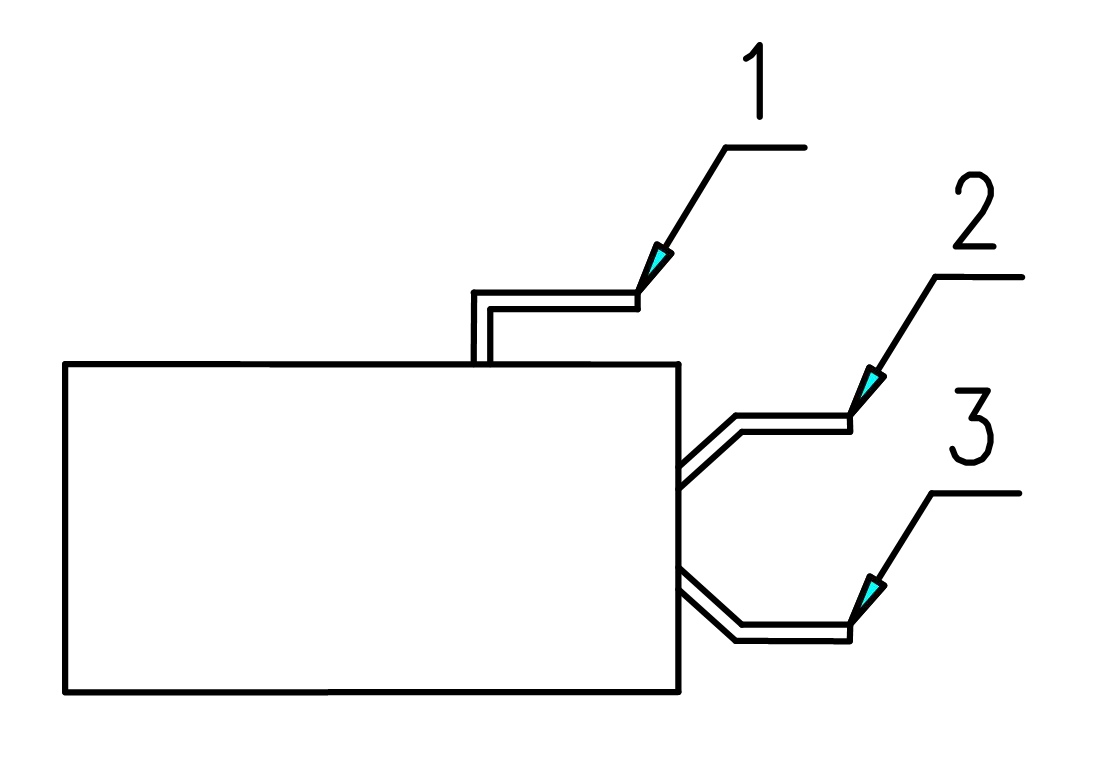

Description of microswitch

Description Of Microswitch

During normal operation, the fuse link is connected between 1 and 3, while 1 and 2 are disconnected. When the fuse link melts, the indicator moves, disconnecting 1 and 3 and connecting 1 and 2, thus achieving remote monitoring. This indicates to electricians that the fuse has melted and needs to be replaced promptly.



Power consumption and fuse characteristics table:

Rated current (A)Dissipated power (W)Forearc I2t(A2S)Fuse I2t(A2S)Remark
30060146000384000
31564152000402000
35069172000454000
40078198000524000
45087225000594000
50099245000646000
550111264000698000
600117297000785000
630162128000615000
7001802180001030000
7501932650001250000
8002063150001490000
10002604500001880000
12503206600002280000
13503407840002660000
150037010500003470000
180043015700004750000
200045021900006650000
2500500442000013300000
3000550770000023100000

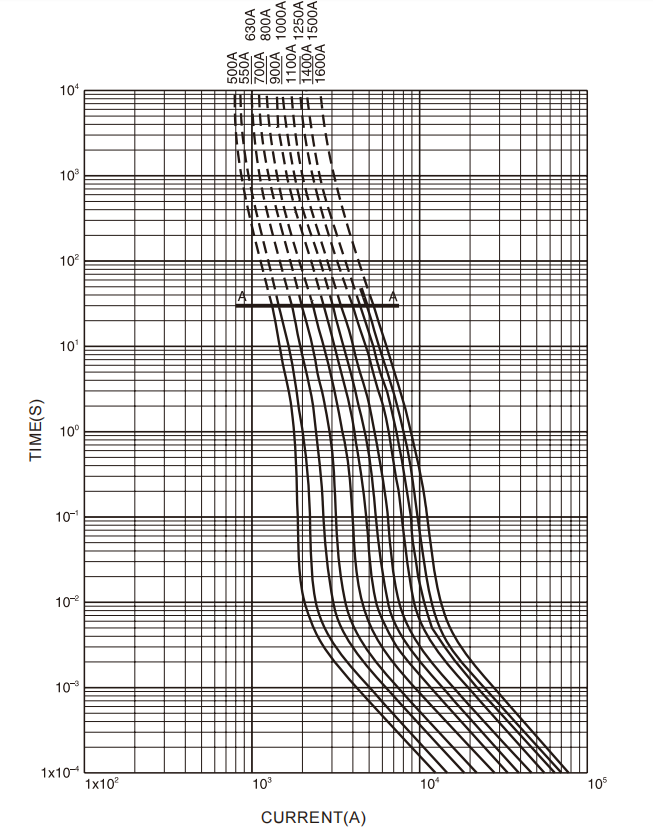

Melting characteristic curve

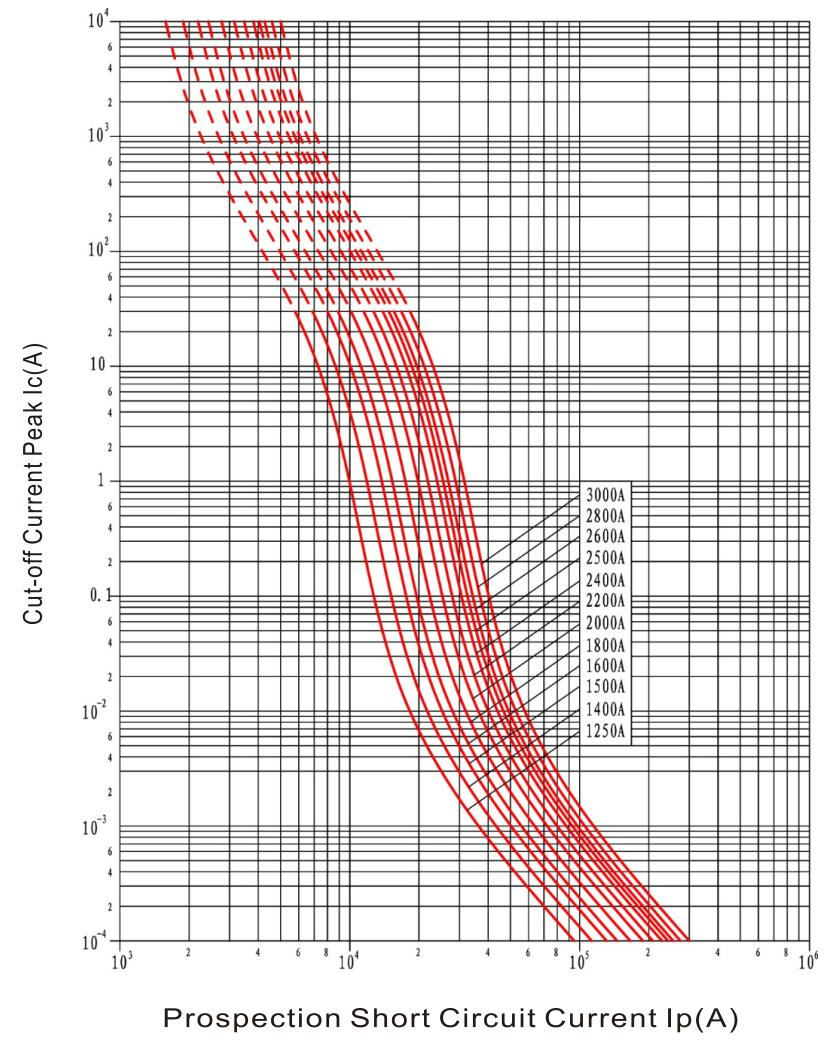

Current(a) Prospection Short Circuit Current Ip(a)
