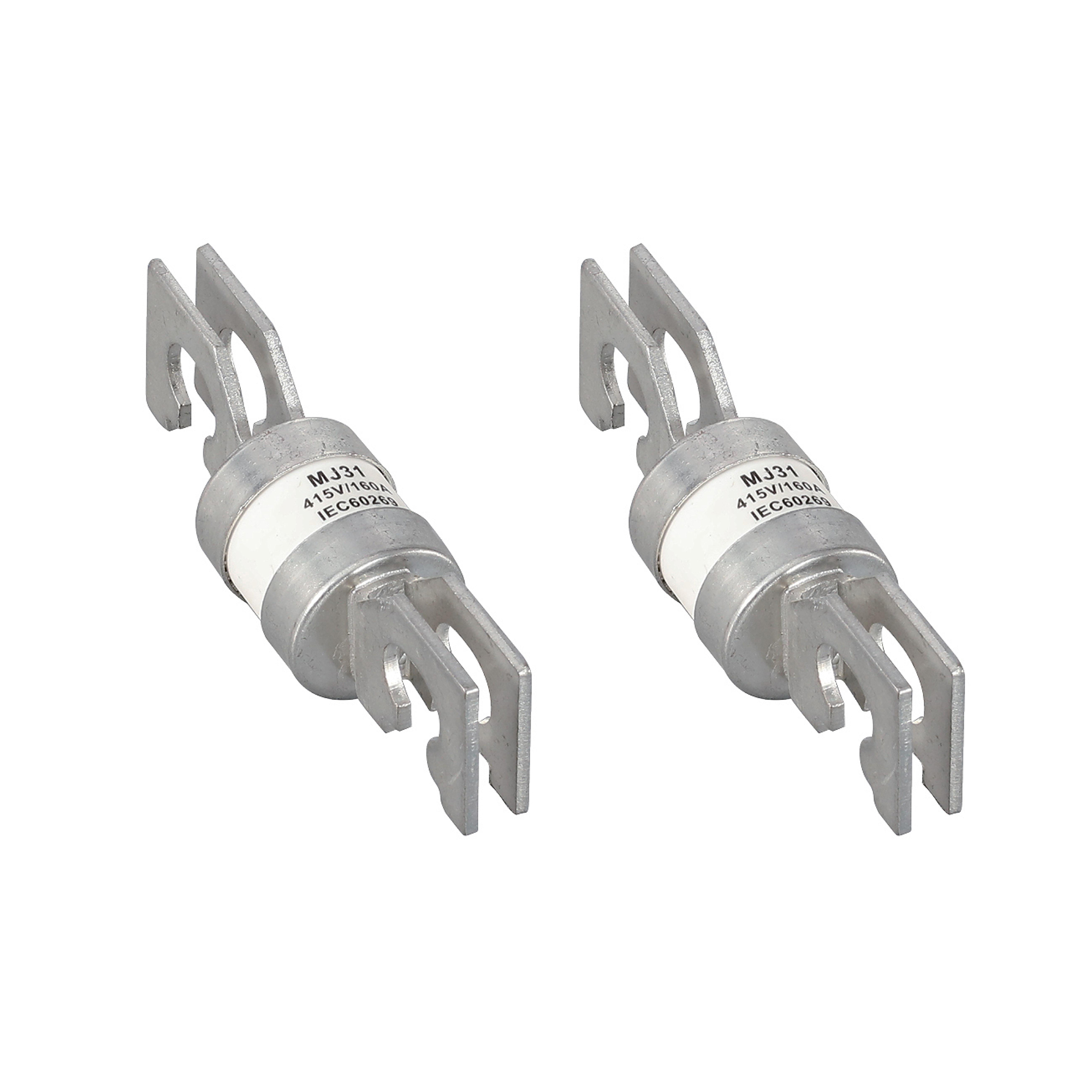

Wedge type contact fuse
Our company’s wedge-tpe contact fuses are suitable for AC 50Hz, rated voltage 415V, wth rated current up to 600A.They are mainly used in electrical installations for overload and short-circuit protection of circuits
Product Overview
Our company’s wedge-tpe contact fuses are suitable for AC 50Hz, rated voltage 415V, wth rated current up to 600A.They are mainly used in electrical installations for overload and short-circuit protection of circuits

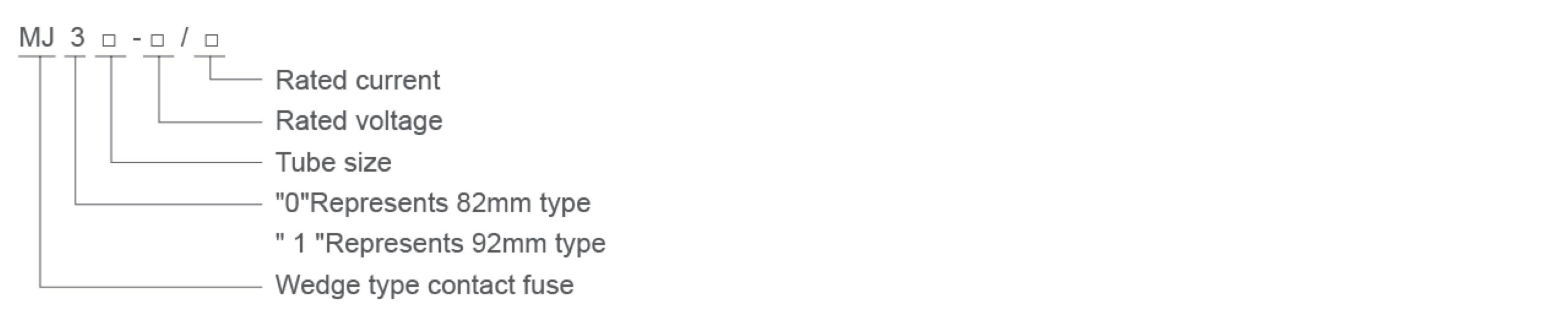

Product Naming Rules
Basic Data
- Rated Voltage:AC415V
- Rated Current:32A-600A
- Operating Class:gG
- Breaking Capacity:80kA
- Standards/Approvals:IEC60269-2 , BS88-2
| Serial Number |
Model P/N | Rated Voltage(V) |
Rated Current(A) | Overall Dimensions | |

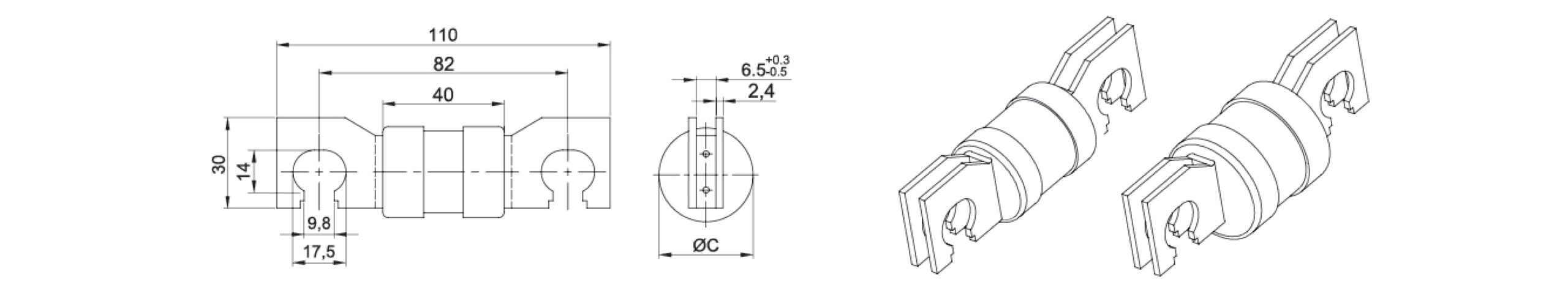

| φC | The rest See the figure below |
||||
| 01 | MJ30 | 415 | 32、40、50、63、80、100、125、160、200 | 31 | |
| 02 | MJ30 | 415 | 63、80、100、125、160、200、250、315、350、400 | 38 | |
| Serial Number |
Model P/N | Rated Voltage(V) |
Rated Current(A) | Overall Dimensions | |

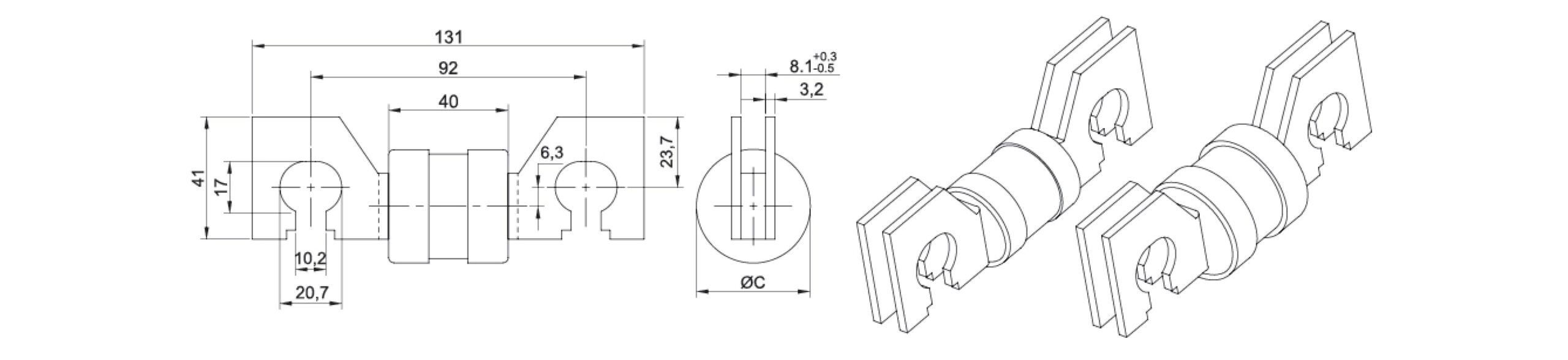

| φC | The rest See the figure below |
||||
| 03 | MJ31 | 415 | 200、250、300、315、400 | 38 | |
| 04 | MJ31 | 415 | 315、400、500、600 | 53 | |
